IOCL Refinery Flare

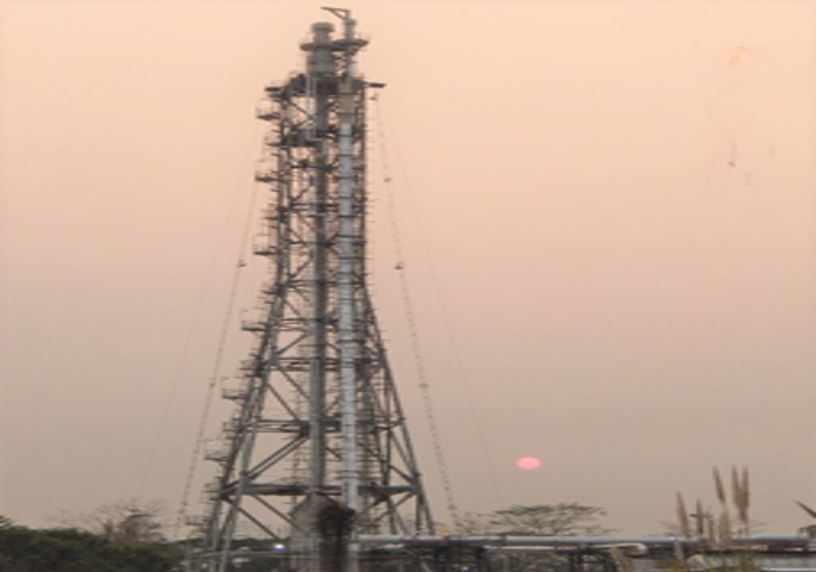

Detail Piping Engineering including 3D modelling & Pipe stress analysis of the Refinery Hydrocarbon Flare system comprising Flare KO Drums, KOD Pumps, Water Seal drum, Flare Riser, Molecular Seal, Flare Tip, Flare Headers from B/L to KOD and From KOD to Water seal Drum, max header size 76”. Flame Front Generator with shelter. Derik Structure common for all flares with stairs/ ladders, operating platforms for mounting and demounting operations. All piping within B/L with steam tracing wherever applicable.
Project Details
1
Owner
IOCL Refinery Ltd.
2
PMC
Toyo Engineering India Ltd.
3
Role
Detail Engineering – Piping & Stress Analysis
4
Software used
PDMS, Flexibility Analysis Software
5
Project
Flare Package
6
Location
Barauni
7
Client
Airoil Flaregas Pvt. Ltd.
8
Status
Completed
